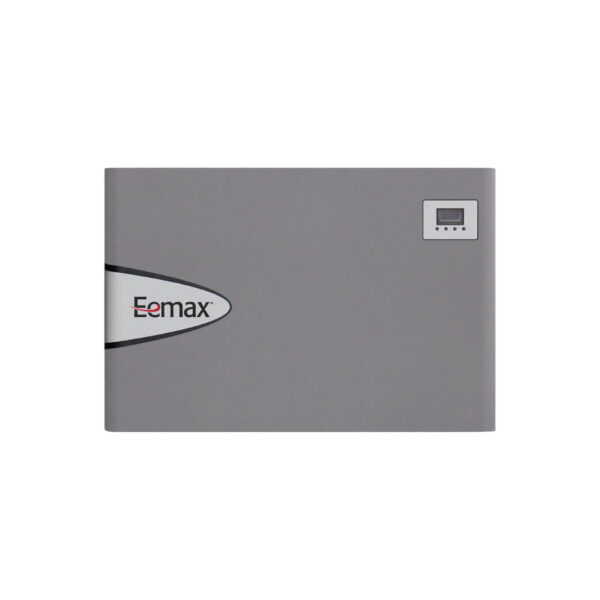

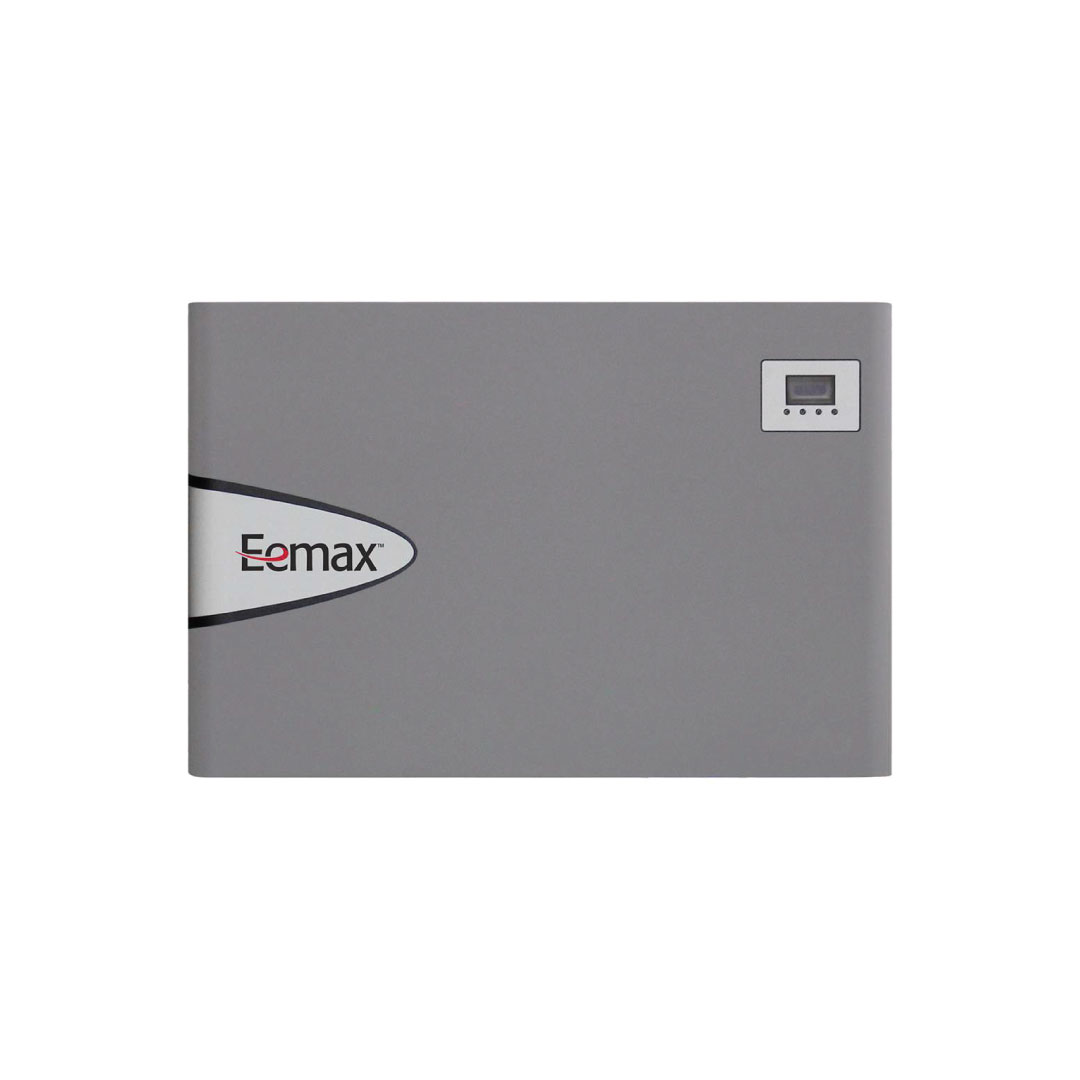

Eemax SpecAdvantage 126kW 480V

Eemax: AP126480 S

• Finish: Slate Gray
• Collection: SpecAdvantage
• Online Product ID: 4664929
• Length: 31.00″
• Width: 24.00″
• Height: 15.00″
• Weight: 75.00 lbs.
• Country of Origin: United States
• Made in USA: Yes
• Material: Nichrome
• Voltage: 480v
• Adjustable Thermostat: Yes
• Amps: 151/phase
• Application Commodity: Commercial
• Connection Size Inches: 1-1/4”

• Connection Type: NPT
• Cover Material: Powder coated steel enclosure
• Element Type: Replaceable cartridge – bare wire
• Hot Or Cold Feed: Pre-heated or cold water feed
• Max Operating Pressure: 150 PSI
• Max Setpoint Temp Degrees F: 180
• Max Volume Gpm: 30
• Min Dynamic Operating Pressure: 35 PSI
• Min Setpoint Temp Degrees F: 100
• Optimum Pressure Range: 60 PSI – 90 PSI
• Orientation: Bottom feed
• Recm D 75c Cu Wire Size: 2/0 AWG
• Thermostat Range: 100 – 180
• Turn On Gpm: 6
• Wattage: 126
