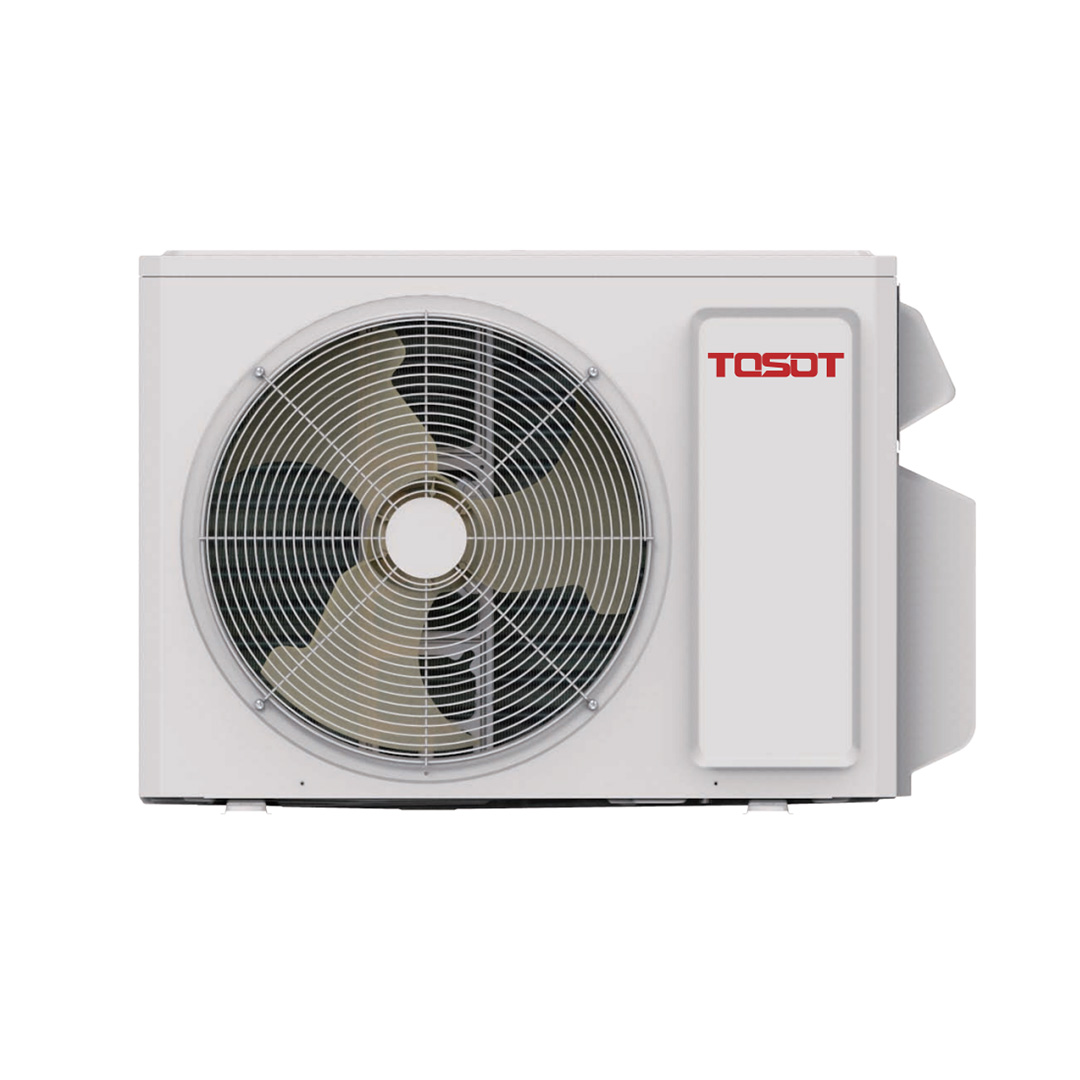

The TOSOT M-Series multi-zone system provides efficient year-round climate control for multiple rooms with one outdoor unit.
| Model | TM18HMO | TM24HMO | TM30HMO | TM36HMO | TM42HMO | |
| Cooling Rated Capacity |
Btu/h | 17000 | 23200 | 28400 | 34000 | 36000 |
| SEER2 | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | |
| Heating Rated Capacity (47°F) | Btu/h | 18000 | 24000 | 30000 | 36000 | 40000 |
| Heating Rated Capacity (17°F) | Btu/h | 14700 | 23600 | 27200 | 30800 | 35600 |
| HSPF2 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | |
| Voltage, Phase, Cycle | V-Ph-Hz | 208/230-1-60 | 208/230-1-60 | 208/230-1-60 | 208/230-1-60 | 208/230-1-60 |
| Cooling Power Input | W | 1420 | 1860 | 2270 | 2830 | 3000 |
| Heating Power Input | W | 1380 | 1800 | 2250 | 2960 | 3020 |
| Number of IDUs Min-Max | 2~2 | 2~3 | 2~4 | 2~4 | 2~5 | |
| Max Piping Length To Any Indoor Unit | ft | 65.6 | 65.6 | 82.0 | 82.0 | 82.0 |
| Piping Lift | ft | 49.2 | 49.2 | 82.0 | 82.0 | 82.0 |
| Liquid Line | in | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 |
| Vapor Line | in | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 |
