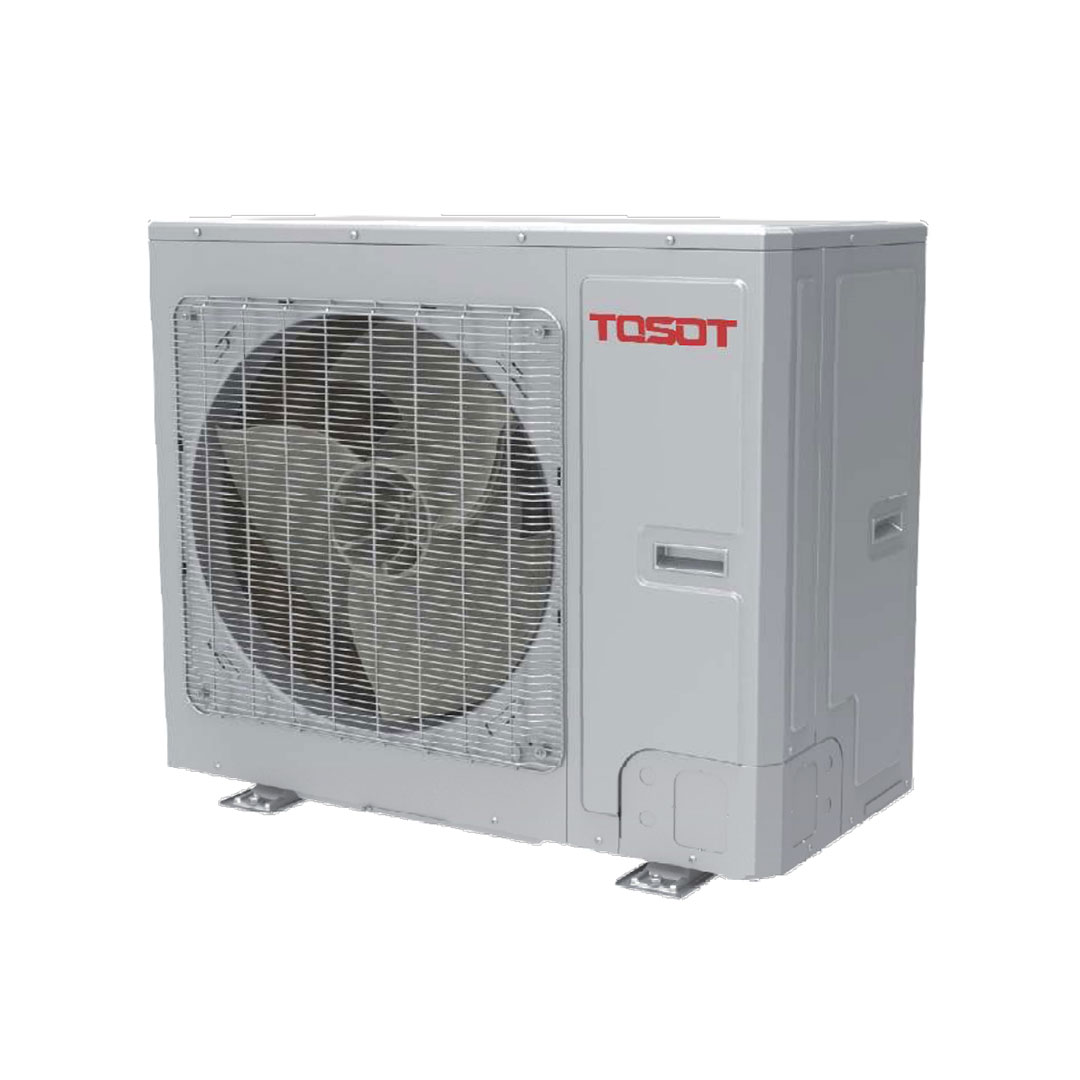

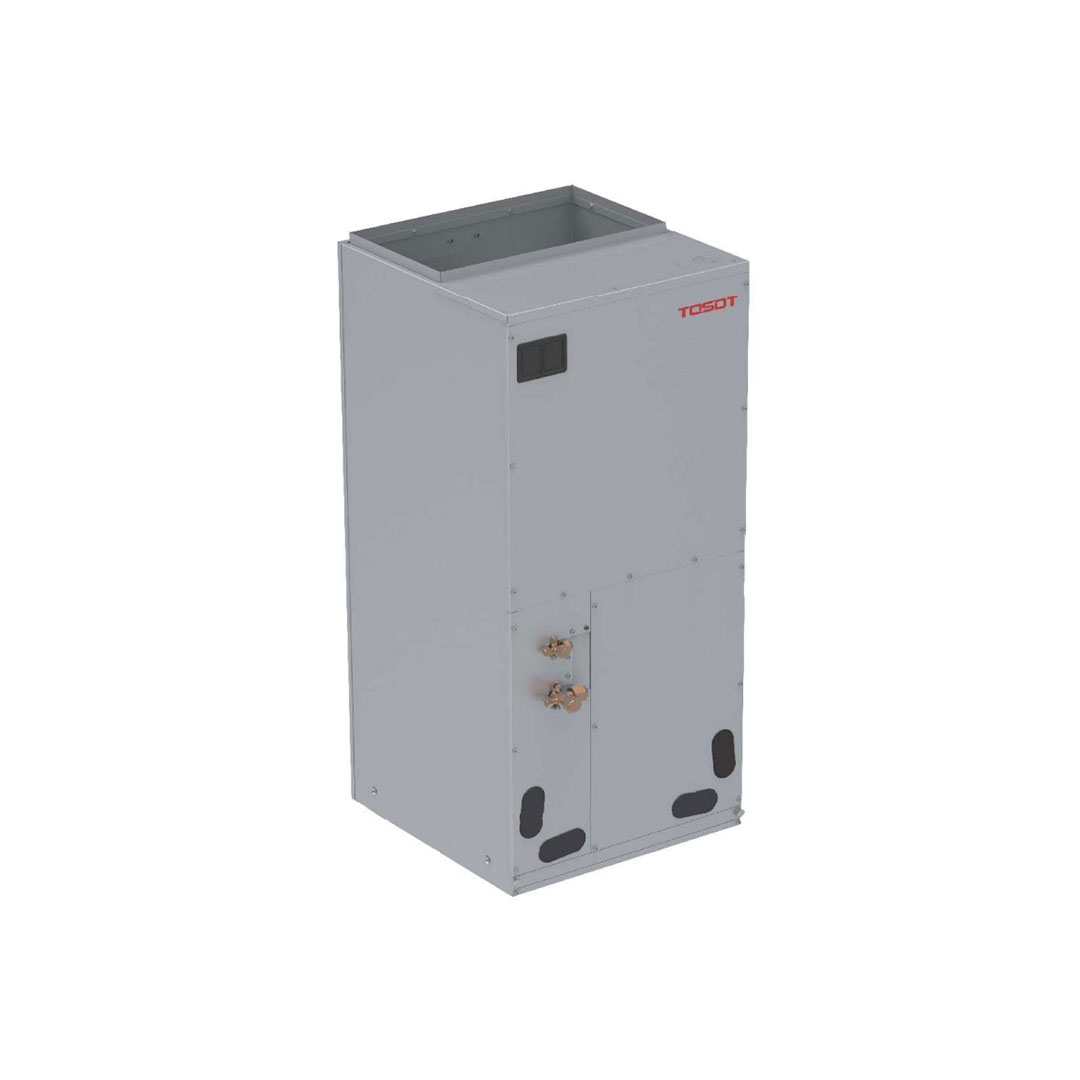

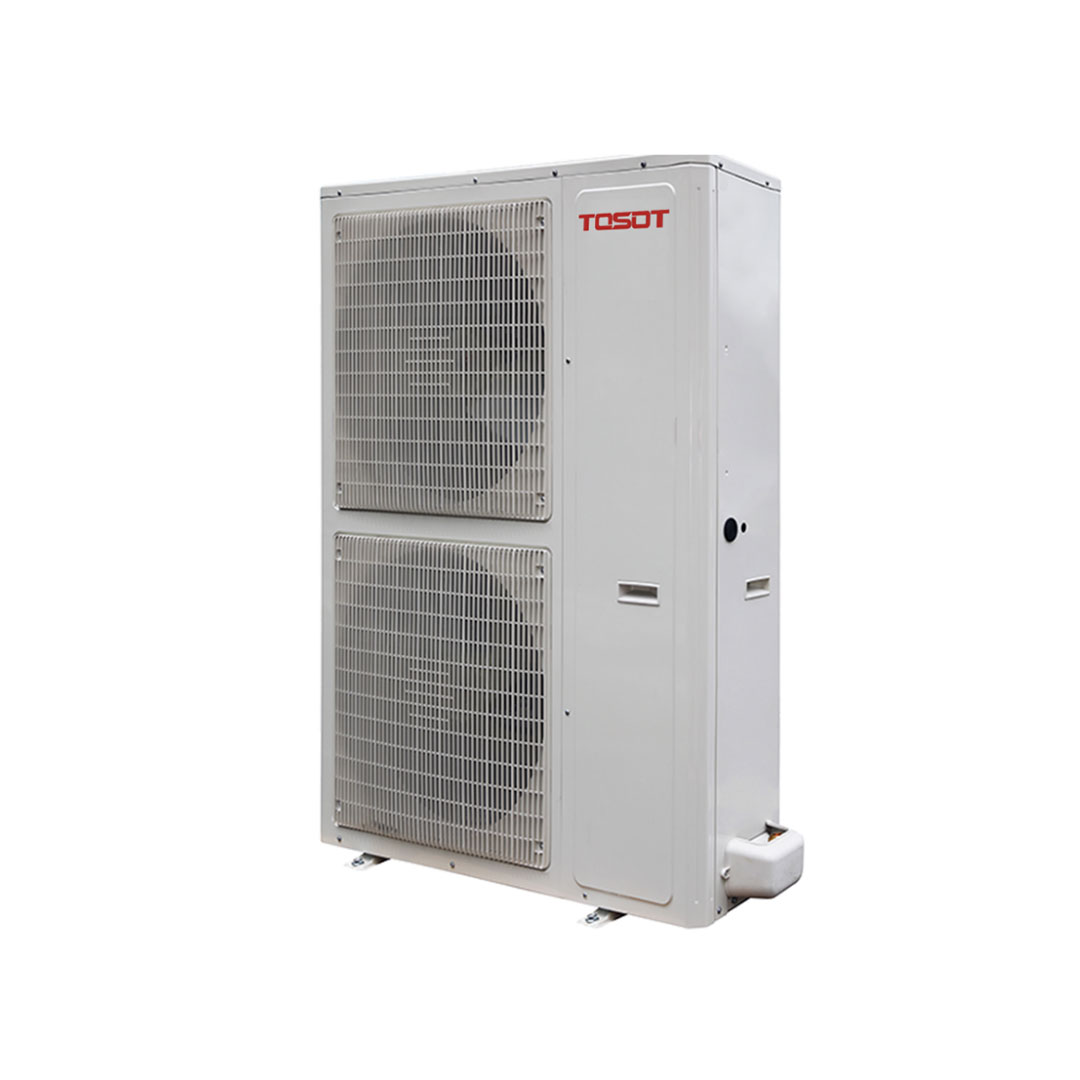

The TOSOT UNIX system delivers year-round comfort with a high-efficiency 18 SEER rating, pairing a durable heat pump with a modern air handler.
| Model | TU36-24WADU | TU60-24WADU | |
| Cooling Rated Capacity |
Btu/h | 36000 | 54000 |
| SEER | 18.0 | 17.0 | |
| Heating Rated Capacity (47°F) | Btu/h | 36000 | 54000 |
| Heating Rated Capacity (17°F) | Btu/h | 24000 | 36000 |
| HSPF | 10.0 | 10.0 | |
| Cooling Ambiant Temperature Min-Max | °F | 5~119 | 5~119 |
| Heating Ambiant Temperature Min-Max | °F | -22~75 | -22~75 |
| Voltage, Phase, Cycle | V-Ph-Hz | 208/230-1-60 | 208/230-1-60 |
| MCA | A | 24 | 35 |
| MOP | A | 35 | 45 |
| Total Piping Length | ft | 98 | 98 |
| Piping Lift | ft | 49 | 49 |
| Liquid Line | in | 3/8 | 3/8 |
| Vapor Line | in | 3/4 | 1/2 |
