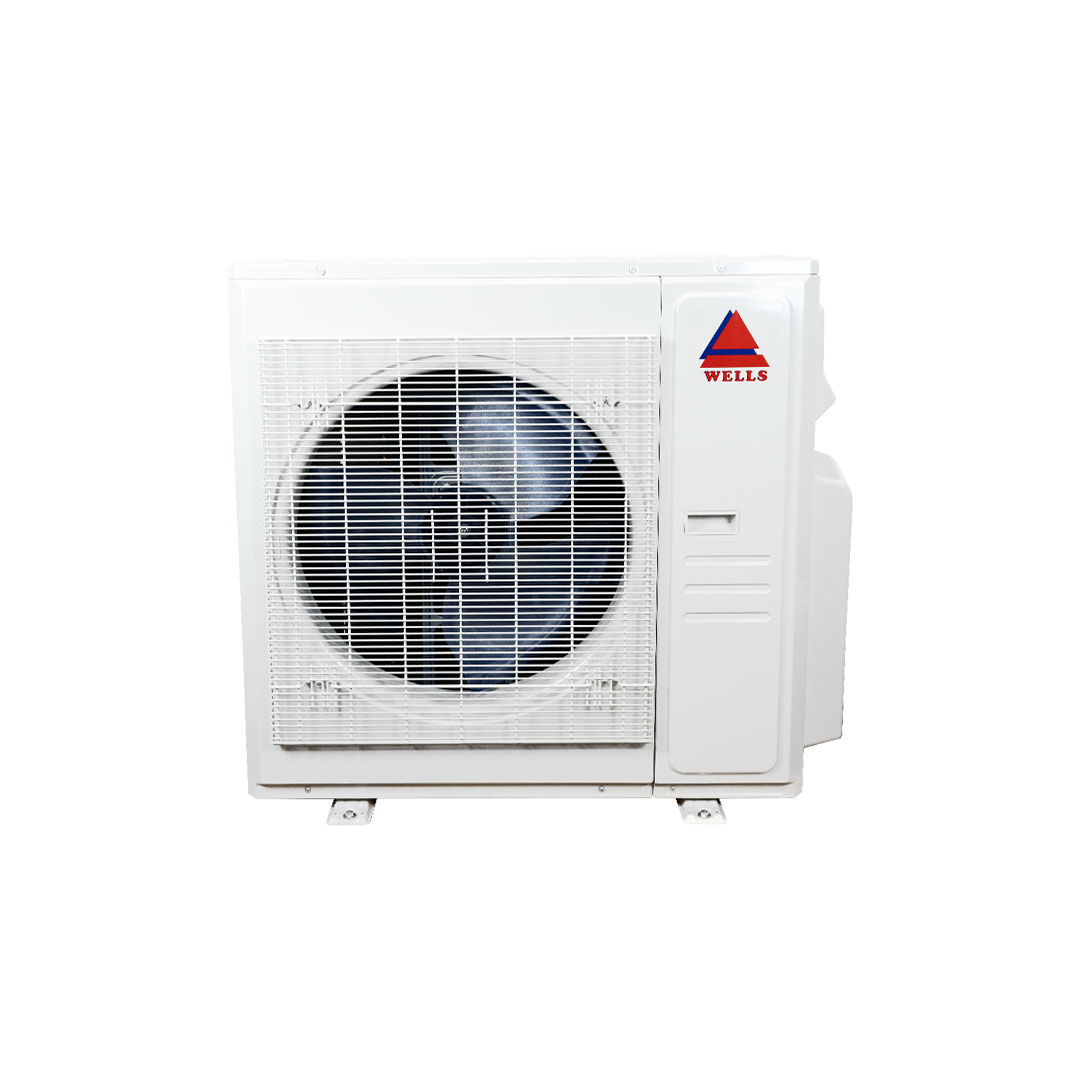

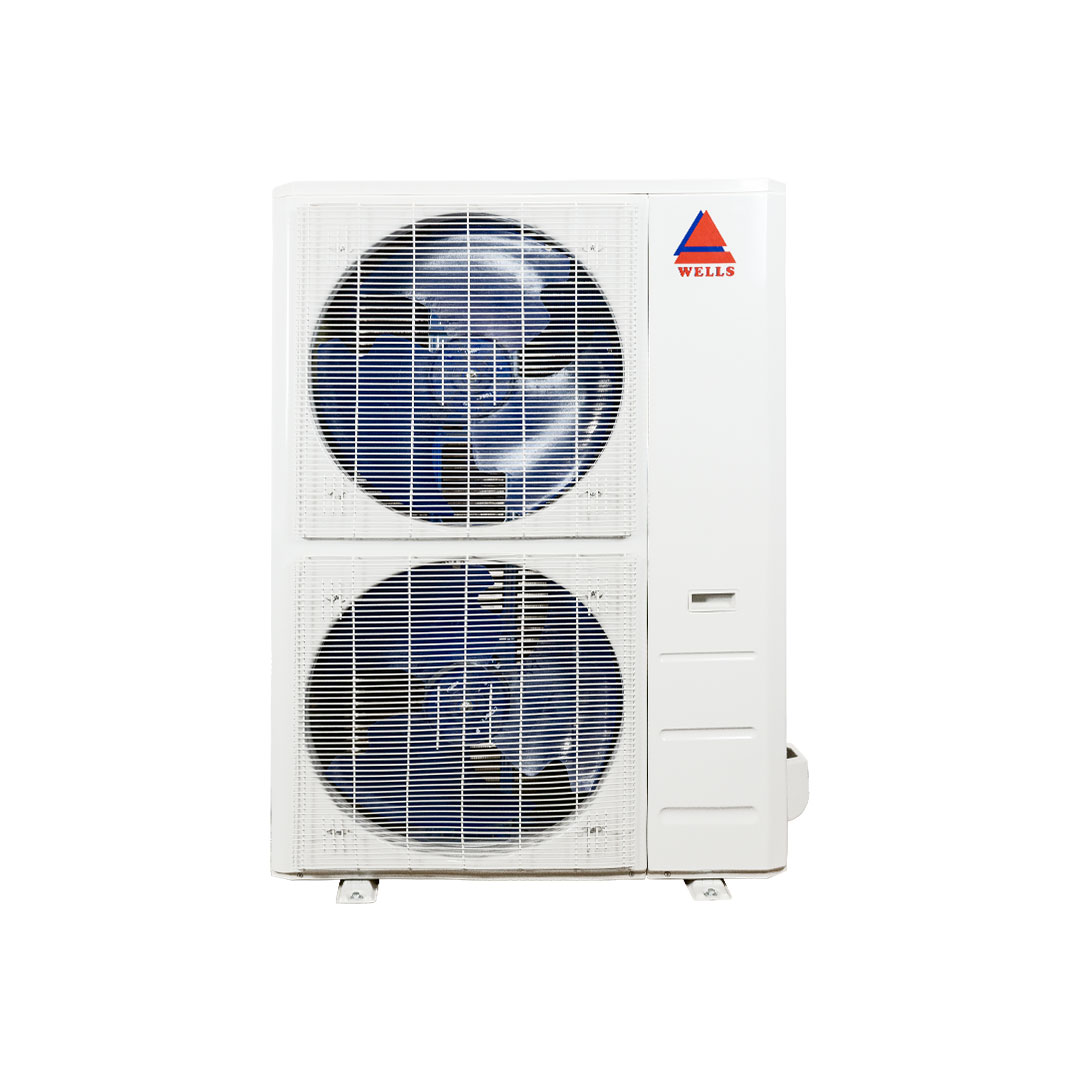

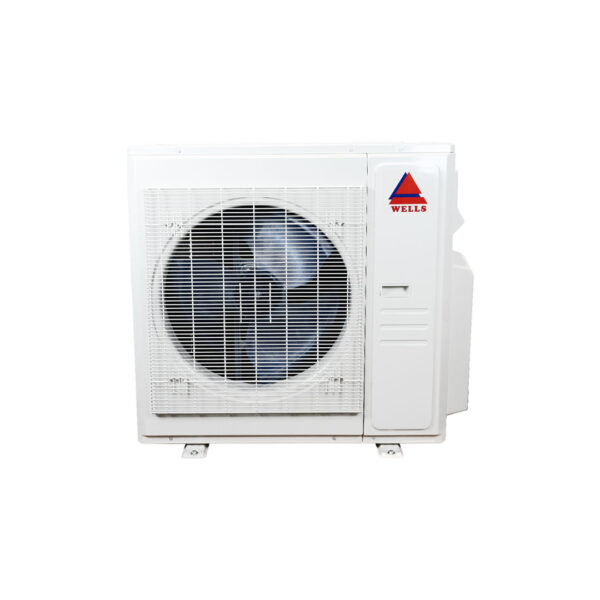

The WELLS Multi-Zone Hyper-Heat system delivers exceptional year-round comfort, especially in cold climates, with reliable heating down to -22°F (-30°C).
| Wells Multizone Hyper Heat Ductless Mini-split | ||||||
| Model | WOM-18HH3/230 | WOM-27HH4/230 | WOM-36HH5/230 | WOM-48HH6/230 | WOM-55HH6/230 | |
| Cooling Capacity | Btu/h | 19000 | 27000 | 36000 | 45000 | 51000 |
| Cooling Current | A | 6.5 | 10 | 13.2 | 16.8 | 18.7 |
| Heating Capacity | Btu/h | 20000 | 27000 | 36000 | 49000 | 55000 |
| Heating Current | A | 6.8 | 10 | 12.4 | 18 | 21.2 |
| SEER2 | Btu/h/W | 21 | 21 | 21.5 | 21.2 | 21.4 |
| EER2 | Btu/h/W | 13 | 12 | 12.2 | 12 | 12 |
| HSPF2-4 | Btu/h/W | 10 | 10 | 11.3 | 10.2 | 10.6 |
| Heating Capacity at 5°F | Btu/h | 18000 | 27000 | 37000 | 48000 | 48000 |
| Heating Capacity at -4°F | Btu/h | 15000 | 20000 | 34000 | 35500 | 36600 |
| Outdoor MINIMUM CIRCUIT AMPACITY | A | 17.5 | 30 | 37 | 37 | 39.5 |
| Outdoor Max.Fuse | A | 20 | 35 | 40 | 40 | 40 |
| Liquid side | inch | 3×1/4in | 4×1/4in | 5×1/4in | 6×1/4in | 6×1/4in |
| Gas side | inch | 3×3/8in | 3×3/8in+1×1/2in | 3×3/8in+2×1/2in | 4×3/8in+2×1/2in | 4×3/8in+2×1/2in |
| Max. Length per each indoor unit | ft | 98.4 | 114.8 | 114.8 | 114.8 | 114.8 |
| Total Maximum Piping Length per system | ft | 196.8 | 262.4 | 262.4 | 262.4 | 262.4 |
| Max. Height Difference | ft | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 |
| Outdoor Item Net/Gross weight | lb | 137.35/148.15 | 168.43/179.67 | 211.86/244.71 | 246.47/276.68 | 246.47/276.68 |
| Outdoor Unit Dimension WxDxH | inch | 37.24 x 16.14 x 31.89 | 37.24 x 16.14 x 31.89 | 38.58 x 16.34 x 38.39 | 37.48 x 16.34 x 52.48 | 37.48 x 16.34 x 52.48 |
| Outdoor Package Dimension WxDxH | inch | 42.91 x 19.68 x 34.84 | 42.91 x 19.68 x 34.84 | 45.08 x 19.68 x 42.52 | 43.11 x 19.49 x 58.27 | 43.11 x 19.49 x 58.27 |
