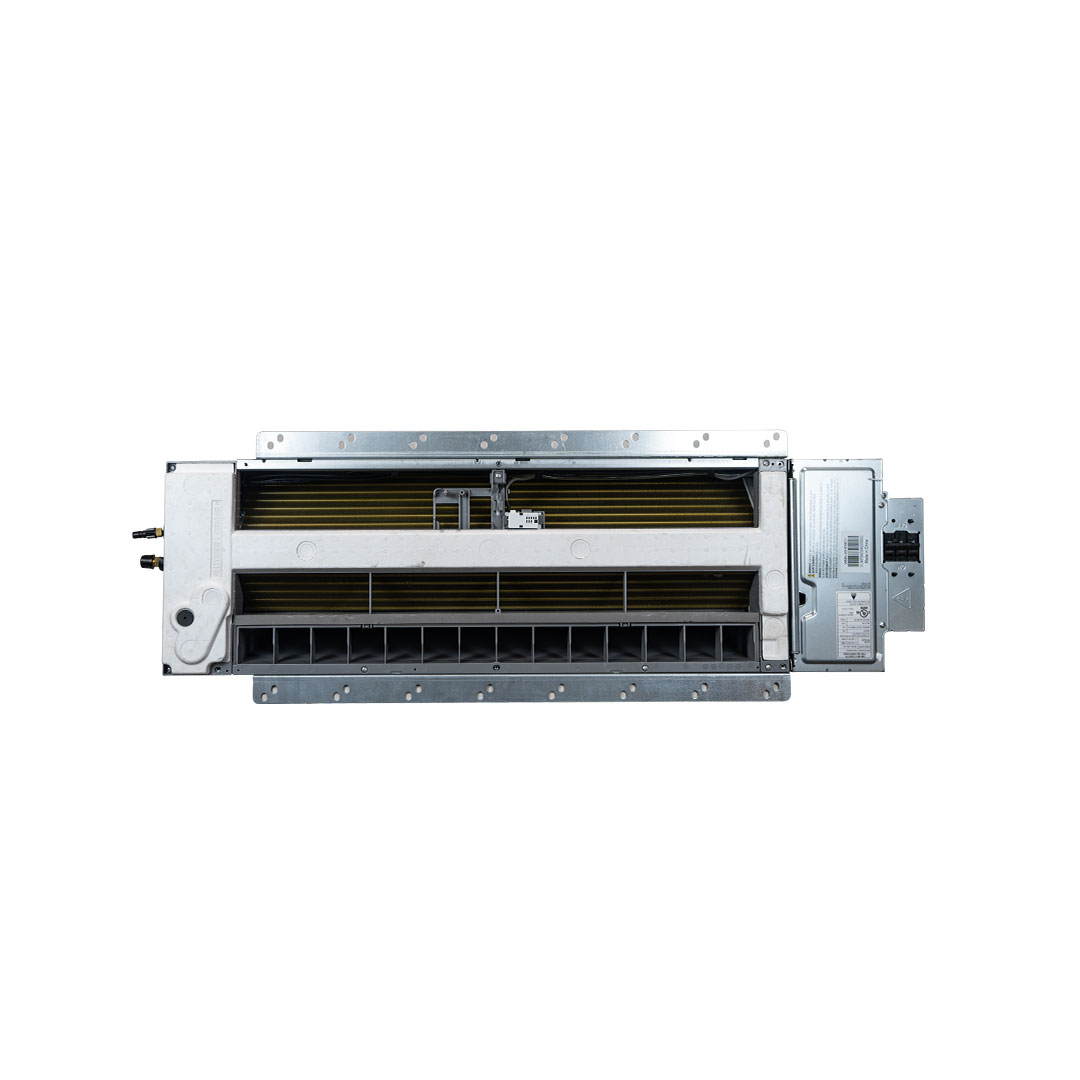

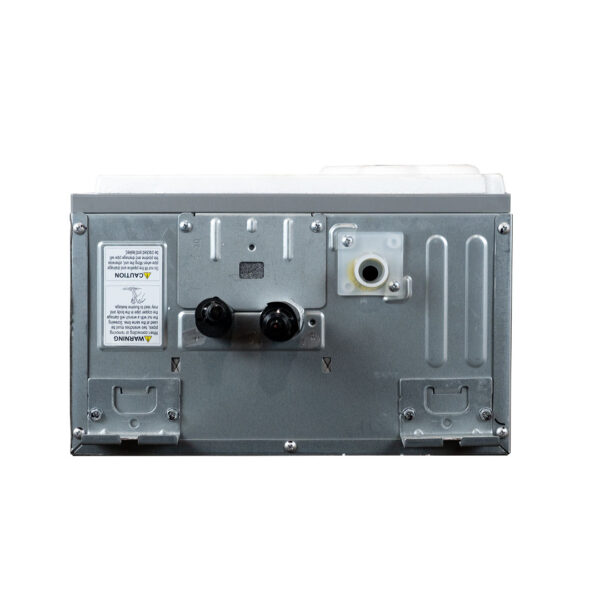

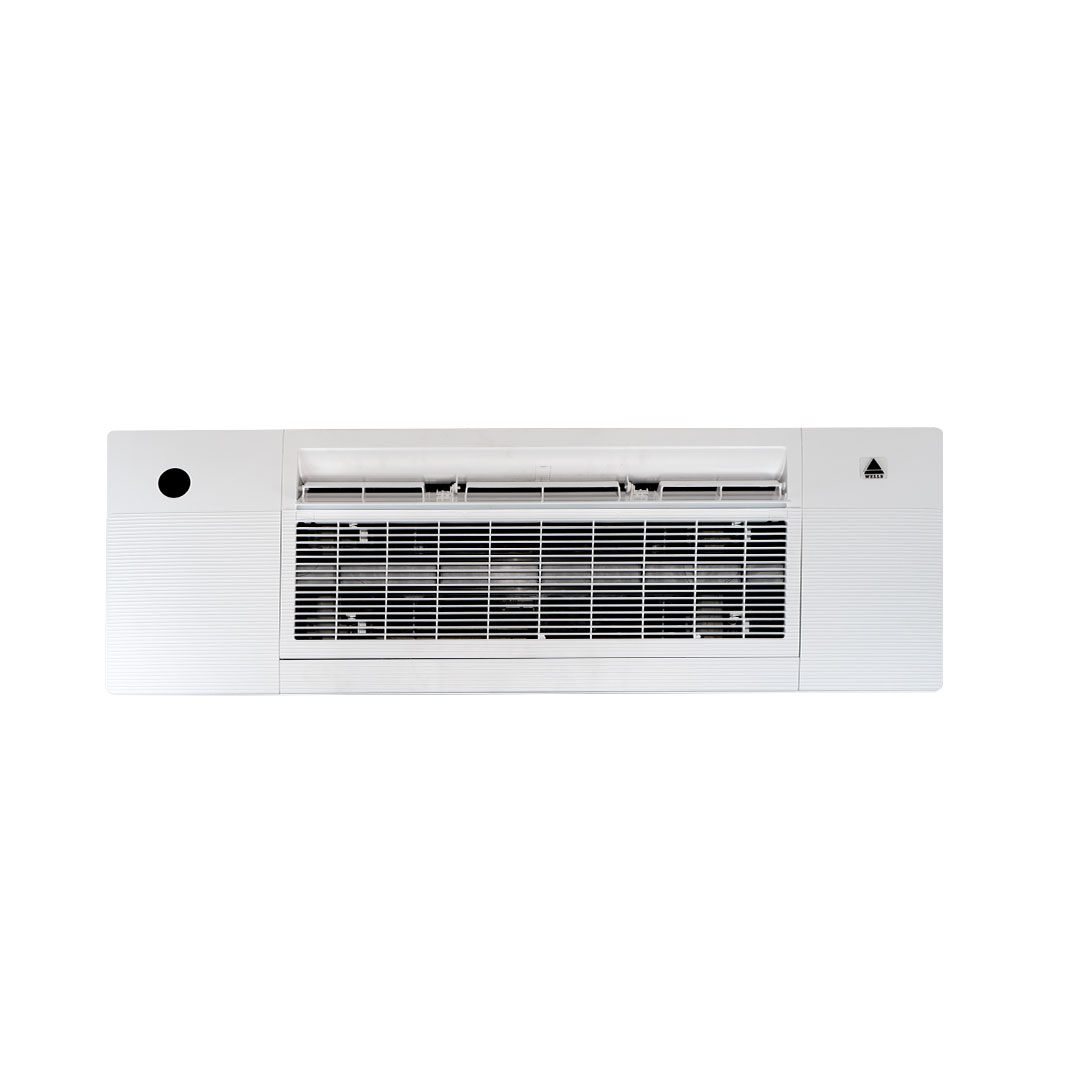

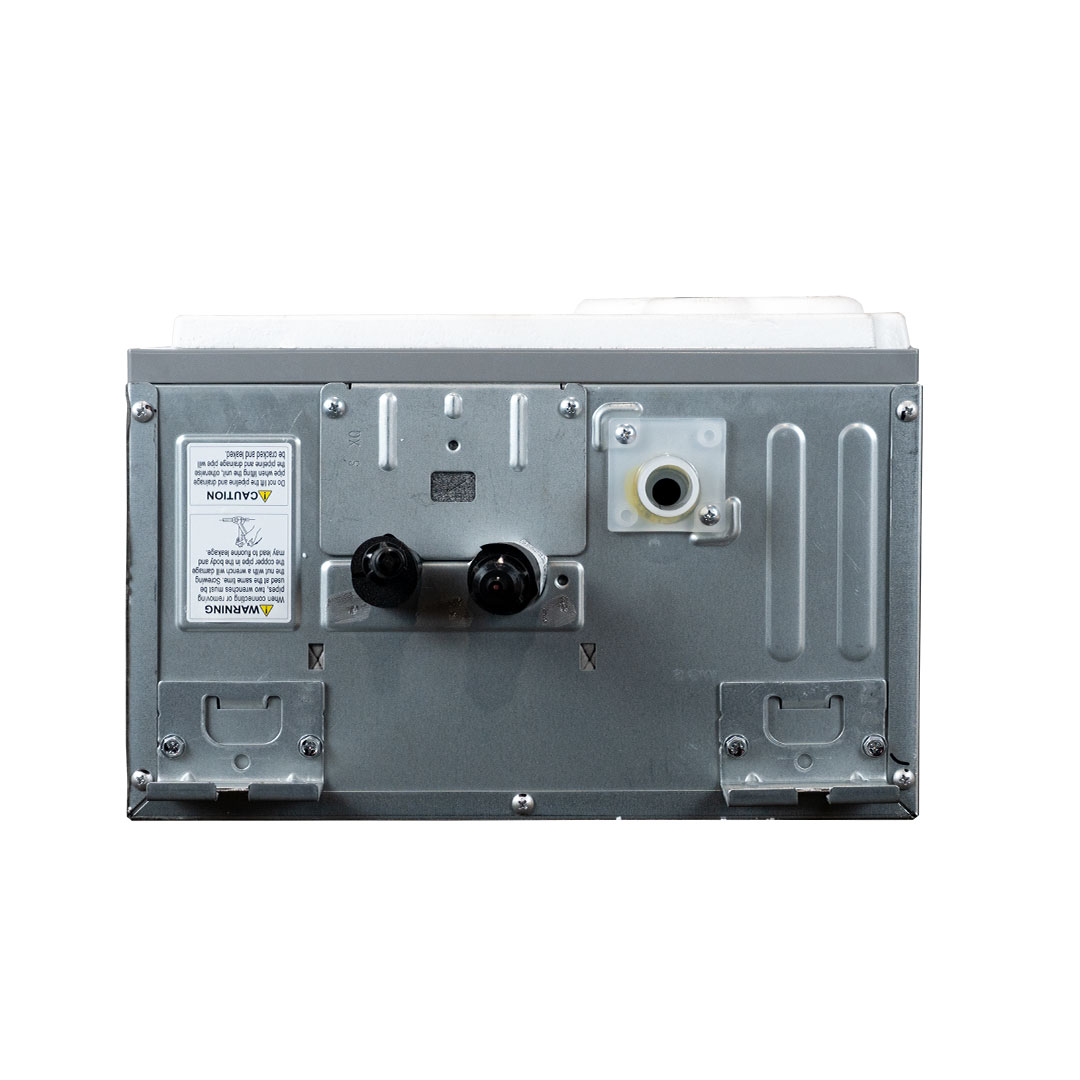

The WELLS one-way cassette indoor unit is designed for sleek, efficient air distribution in narrow or elongated spaces such as hallways, bedrooms, clinics.
| Wells Multizone One-Way Cassette Unit | |||
| Model | WMA-12HFMC1 | WMA-18HFMC1 | |
| Performance | |||
| Power Supply(V, Ph, Hz) | 208/230, 1, 60 | 208/230, 1, 60 | |
| Air Flow Volume(CFM) | H/M/L | 311/282/247 | 351/300/207 |
| Noise Level(dB(A)) | H/M/L | 38.5/37/32.5 | 44/40.5/35 |
| Indoor Unit | |||
| Net Dimension(inch) | W x D x H | 50.31×13.19×8.98 | 50.31×13.19×8.98 |
| Package Dimension(inch) | W x D x H | 52.37×13.19×22.44 | 52.37×13.19×22.44 |
| Net/Gross Weight(lbs) | 45.19/82.89 | 45.19/82.89 | |
| Panel | |||
| Net Dimension(inch) | W x D x H | 53.54×18.71×3.9 | 53.54×18.71×3.9 |
| Package Dimension(inch) | W x D x H | 56.5×21.3×6.6 | 56.5×21.3×6.6 |
| Net/Gross Weight(lbs) | 14.33/22.71 | 14.33/22.71 | |
