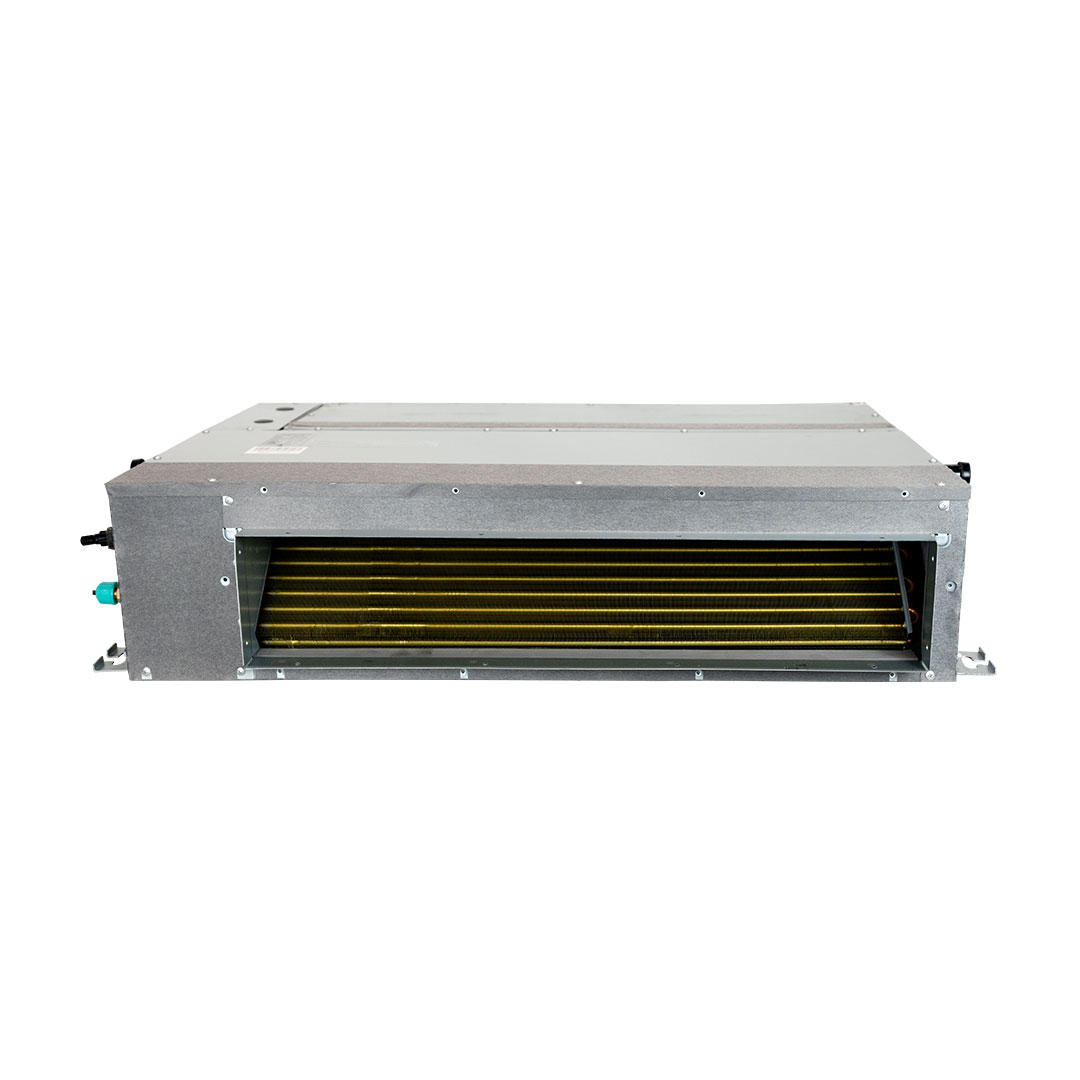

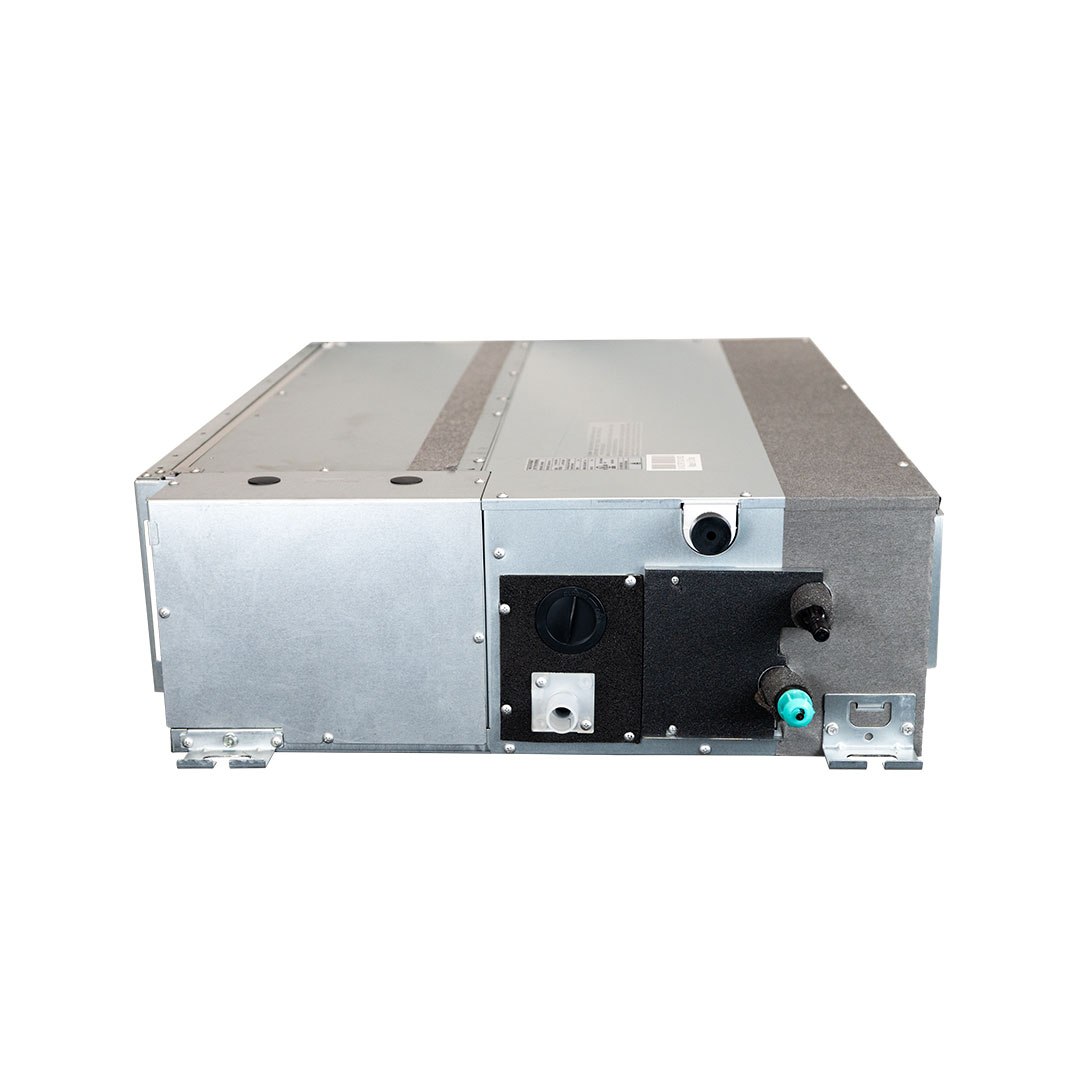

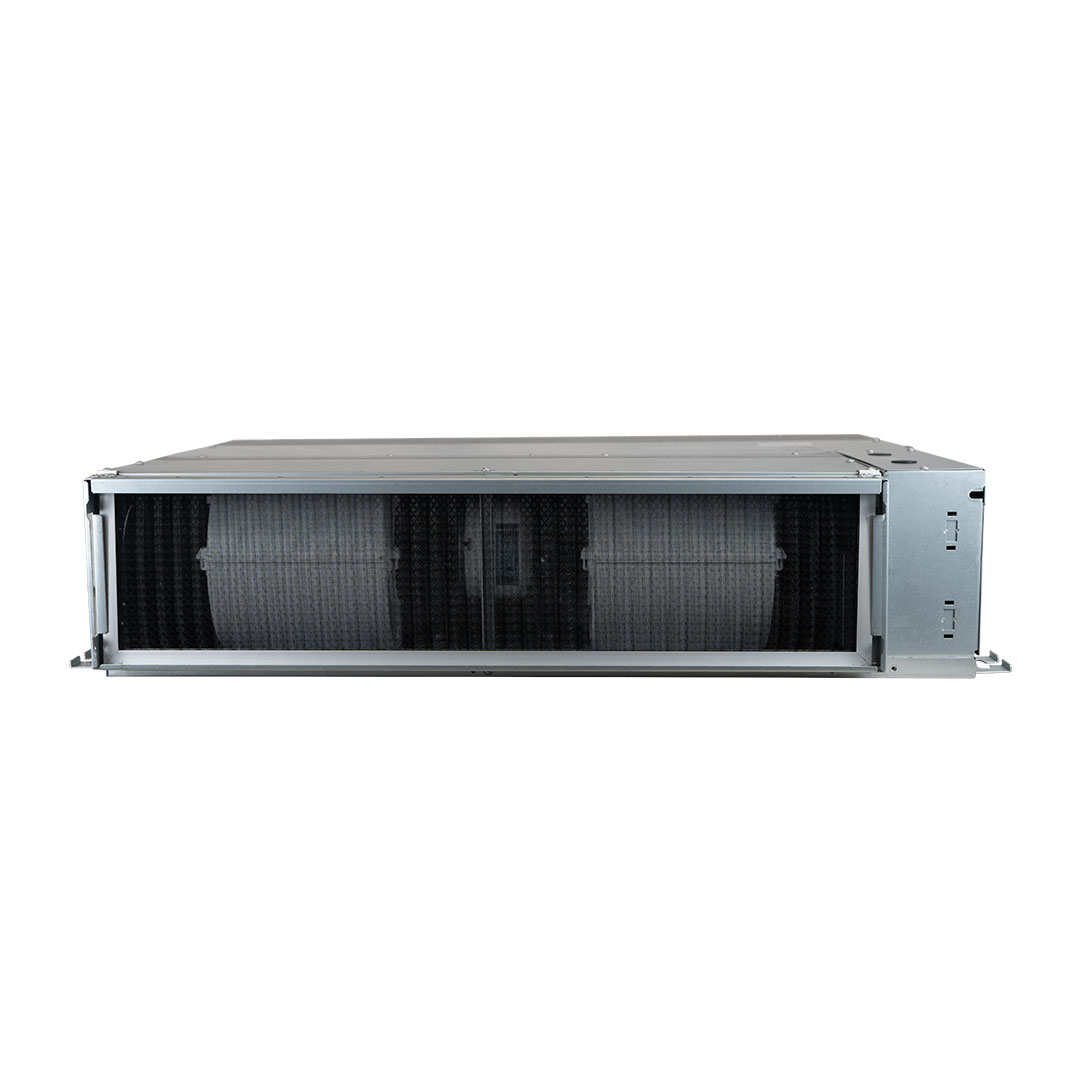

The WELLS ducted indoor unit for multi-zone systems is engineered to deliver efficient, hidden climate controlthrough ceiling cavities or customized.
| Wells Multizone Duct Unit | ||||
| Model | WMA-12HFMD | WMA-18HFMD | WMA-24HFMD | |
| Performance | ||||
| Power Supply(V, Ph, Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | |
| Air Flow Volume(CFM) | H/M/L | 352.94/282.35/176.47 | 529.41/450.00/370.59 | 775.47/693.06/434.88 |
| Noise Level(dB(A)) | H/M/L | 38/34.5/31 | 43/40.5/38 | 44/41/37 |
| Indoor Unit | ||||
| Net Dimension(inch) | W x D x H | 27.56×19.92×7.87 | 34.65×28.53×8.27 | 43x30x10 |
| Package Dimension(inch) | W x D x H | 33.86×21.26×11.22 | 42.13×28.54×11.02 | 51x32x12.4 |
| Net/Gross Weight(lbs) | 39.24/48.5 | 54/66 | 90.39/105.82 | |
